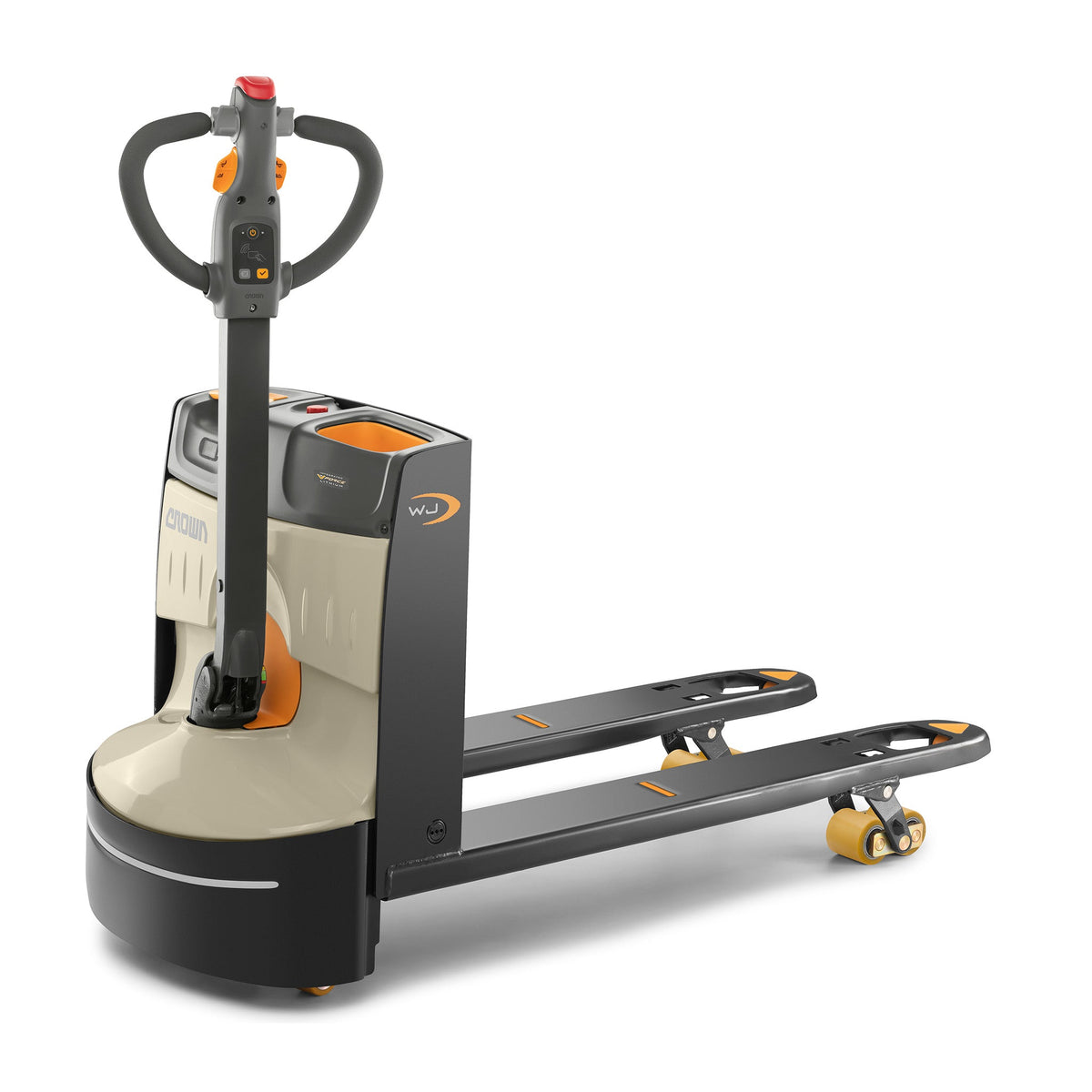

Crown WJ 50 Series compact electric pallet truck, Load Capacity 1,500 kg, Fork L 1,150 mm x W 540 mm, Battery 48 V/ 19.6 Ah, 10 A charger on board, Tandem Polyurethane Load Wheels

The WJ 50 Series electric pallet trucks from Crown were specifically designed to combine the practical handling of a traditional manual pallet truck with the advantages of an electric pallet truck.

As our most compact electric pallet truck, it offers a combination of maneuverability, performance and ergonomics that are ideal for businesses that need to move heavy loads in tight spaces with minimal effort. Tandem polyurethane wheels are ideal for smooth floors and Euro pallets. They operate quietly and are suitable for universal use.

Whether in supermarkets, logistics centers or as a portable forklift on a lorry, the Crown WJ 50 Series can increase the efficiency of your operations, even handling loads on ramps with up to an eight percent incline with ease. Its reliability is backed by our trusted service network and an industry-leading 3-2-1 warranty.

Technical data

• Model: WJ50-15-540-1150
• Power source: Electric
• Load capacity (kg): 1,500
• Fork length (mm): 1,150
• Width (mm): 540
• Max. Lift Height (mm): 190
• Wheels: Tandem Polyurethane
• Warranty: 3-2-1 years
• V-Force-Battery (V/Ah): 48 / 19.6
• Charger: 10 A on board
• Traction motor (kW): 0.70
• Lift speed with/without load (m/s): 0.023 / 0.030
• Lowering speed with/without load (m/s): 0.059 / 0.045
• Max. gradability with/without load (%): 8 / 25
• Tyre size (mm): 230x73

Specifications       Brochure
